30 Sep GPR vs. X-Ray for Concrete Scanning: What NJ & NYC Contractors Should Know Before Coring or Cutting
GPR vs. X-ray concrete scanning is an important decision before a crew cores a slab for a new riser or saw cuts a trench for a drain line. Someone has to answer one question: what's inside that concrete? Hit a post-tension tendon and you're looking at a structural repair, a safety incident and a stalled schedule. Cut through an energized conduit and the outcome can be worse. And drawings, especially in older New Jersey and New York City buildings, rarely show what was actually placed in the pour.
There are two common ways to see inside concrete before you cut: ground penetrating radar (GPR) and concrete X-ray (radiography). Both work. They are not interchangeable, though, and picking the wrong one costs time, money or certainty. This guide explains how each method works, where each one struggles, and how to choose for the job in front of you.
The Short Answer
For most coring, cutting and anchoring work on active job sites, GPR is the practical first choice. It needs access to only one side of the concrete, uses no ionizing radiation, gives results on site in real time, and estimates the depth of what it finds. It's also the only option for slab-on-grade, where there is no underside to work from.
X-ray earns its place when the reinforcement is so congested that radar reflections are hard to separate, when the concrete is too fresh or wet for radar to read well, or when a critical cut demands a photographic image of the interior. In return it needs access to both sides of the element, a cleared exclusion zone and a licensed radiography crew.
The rest of this article explains why, so you can make the call with confidence and not of habit.

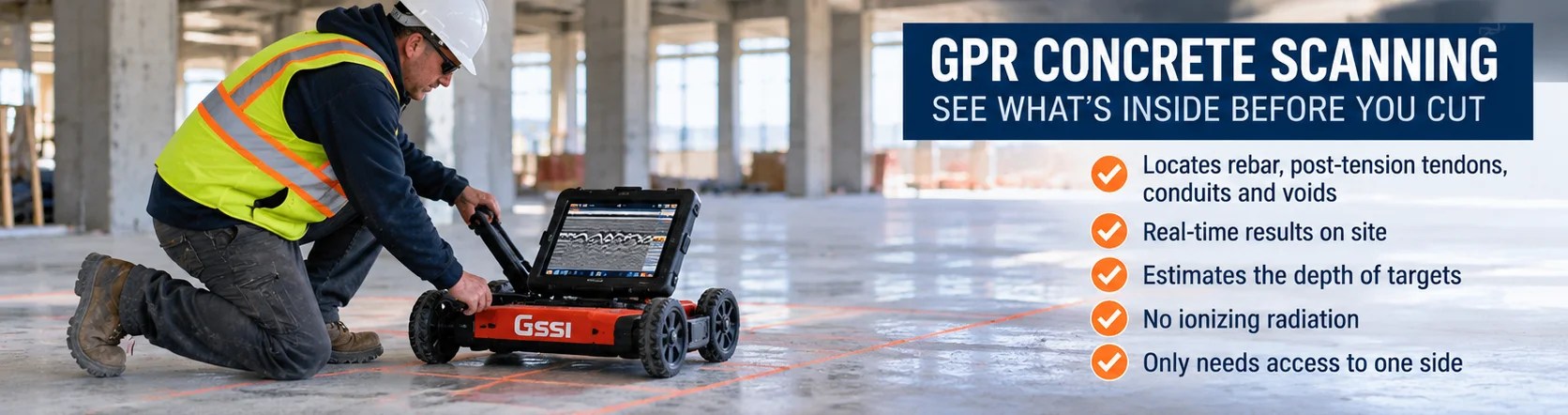

How GPR Concrete Scanning Works
A ground penetrating radar concrete scanner sends short pulses of high-frequency radio energy into the slab and records the reflections that come back. Anything with different electrical properties from the surrounding concrete, such as steel, a conduit, a void or a change in material, returns a signal. As the technician rolls the antenna across the surface, the system builds a cross-section that shows targets as characteristic hyperbolas. Scanning a grid produces a plan-view "slice" of the slab at different depths.
Modern concrete-scanning GPR systems use high-frequency radar designed to balance resolution and penetration. Some systems use a centered frequency, while newer systems transmit across a broader frequency range. There is no single scanning depth that applies to every slab. Practical penetration depends on the equipment, concrete age and moisture, reinforcement density, target size and other site conditions.
What GPR Can Help Locate
- Rebar and welded wire mesh, including top and bottom mats
- Post-tension tendons, often distinguishable from rebar by their draped profile
- Metallic conduits and, in many cases, non-metallic (PVC) conduit and pipe
- Voids, delamination indicators and slab thickness
- The approximate depth of each target, which matters when you only need a shallow anchor rather than a full-depth core
Where GPR Struggles
- Heavily congested reinforcement. Tightly spaced or stacked bars can "shadow" what lies beneath them.
- Green or saturated concrete. Moisture absorbs radar energy and reduces depth and clarity. Results improve as concrete cures and dries.
- Metal decking. Radar can't pass through steel, so on composite slabs it reads only the concrete above the deck, and it can't scan up from underneath the deck.
- Small or empty plastic lines. These return weaker signals than steel, so they call for experienced interpretation and conservative marking.
- Interpretation. GPR data is only as good as the technician reading it. Ask who will be on site and what their experience is.
How Concrete X-Ray Works
Concrete radiography works much like a medical X-ray. A radiation source is placed on one side of the concrete element and a film or digital detector on the other. Dense materials such as steel absorb more radiation and show up clearly against the concrete, producing an actual image of the interior. Older film-based methods required off-site development. Modern digital radiography can return an image on site within minutes.
What X-Ray Does Well
- Clarity in congested elements. Densely reinforced walls, beams and slabs where overlapping radar reflections are difficult to separate
- A visual record. An image that is easy for engineers, owners and inspectors to review without radar interpretation
- Fresh concrete. Less sensitive to moisture than GPR
- Small embedded items. Fine detail on tightly spaced components within the imaged area
What X-Ray Requires on Site
- Access to both sides of the element. That rules out slab-on-grade and many foundation walls.
- A cleared exclusion zone while exposures are taken. Because the zone extends above and below the slab, that often means coordinating with other trades, tenants or building management, and in occupied buildings it frequently means off-hours scheduling.
- Licensed operators and regulated equipment. Radiation-producing equipment and radioactive sources are regulated. In New Jersey that falls under the NJDEP radiation protection programs. In New York, the state Department of Health regulates them, and within New York City the city Department of Health and Mental Hygiene licenses radioactive materials and registers X-ray equipment.
- No direct depth data. A radiograph shows where something is in plan, not how deep it sits.
- Limited coverage per exposure. Each shot images a defined area, so X-ray suits individual core locations better than large scan areas.

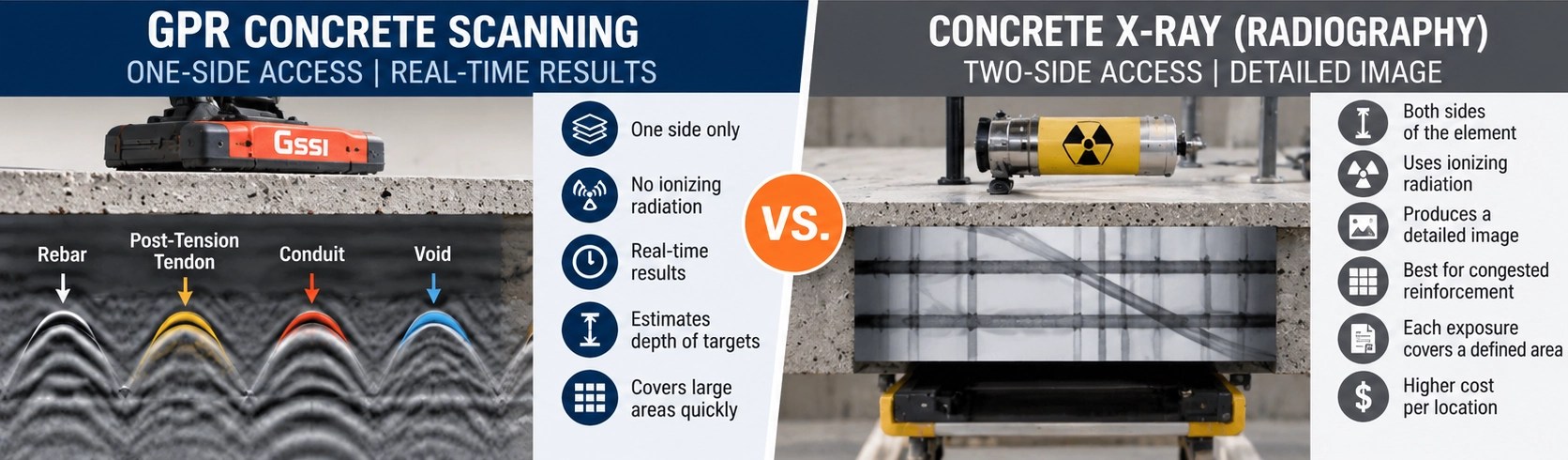

GPR vs. X-Ray Concrete Scanning at a Glance
| Factor | GPR Concrete Scanning | Concrete X-Ray |
|---|---|---|
| Access needed | One side only | Both sides of the element |
| Slab-on-grade | Yes | No |
| Radiation | None (non-ionizing radio energy) | Ionizing radiation; exclusion zone required |
| Impact on other trades | Minimal; work continues around the scan | Area must be cleared during exposures |
| Results | Real time, marked on the surface | Minutes (digital) to longer (film) |
| Depth of targets | Estimated for each target | Not provided |
| Coverage | Large areas quickly | One defined area per exposure |
| Congested reinforcement | Can be hard to resolve | Strongest use case |
| Fresh / wet concrete | Reduced performance | Less affected |
| Typical relative cost | Lower for most scopes | Higher per location |
Which Method Fits Your Situation?
Slab-on-Grade Coring or Trenching
GPR is generally the practical choice for slab-on-grade scanning because conventional concrete radiography requires access to both sides of the element. It's also where scanning matters most, since conduits and utilities often run in or just below the slab. If you're trenching through the slab and into the soil beneath, pair the concrete scan with a private utility locate, because the lines under a building or parking lot are usually private and won't be marked by a public markout.
Elevated Post-Tensioned Slabs
Post-tensioned slabs are common in New Jersey multifamily construction and parking structures, and in many New York City residential towers. Here GPR is usually the efficient first step: it maps tendons and their depth across the work area without shutting down the floor above or below. If a proposed core sits in a band of tightly bundled tendons, or the engineer of record wants an image before approving a cut, X-ray of that specific location is a reasonable follow-up.
Heavily Reinforced Walls, Columns and Beams
Transfer elements, shear walls and columns can carry so much steel that radar returns overlap. If both faces are accessible and you can clear the area, X-ray often gives a more definitive answer. A common approach is to screen with GPR first and reserve X-ray for the locations GPR can't resolve.
Composite Slabs on Metal Deck
GPR can read the concrete above the deck from the topside, including the deck flutes and anything embedded above them, but it can't see through the steel. Discuss the deck profile and what you need to find with your scanning provider before mobilization.
Fresh Concrete
If you must core within days of a pour, moisture may limit radar depth and clarity. Ask your provider whether GPR results will be reliable at that age, or whether waiting, or using X-ray, makes more sense.
Occupied Hospitals, Schools, Labs and Offices
Clearing space above and below for radiography is often impractical in buildings that can't empty out. GPR's no-radiation, one-sided workflow lets facility teams keep operating while the scan happens.
Scheduling Realities in New Jersey and New York City
On paper, X-ray and GPR are both "concrete scanning." On a tight urban schedule, they behave very differently:
- X-ray work frequently moves to nights or weekends so floors above and below can be cleared. That adds coordination with building management, security and other trades, and it can push your coring crew's start date.
- GPR can usually be scheduled alongside other work, with markings laid out the same day so the coring crew can follow directly behind.
- Multiple core locations favor GPR. A single X-ray exposure covers a defined area, so a floor with dozens of penetrations multiplies setups. GPR can scan the whole layout in one visit.
Questions to Ask Before You Book a Scan
- Which side(s) of the element can we access, and is this slab-on-grade, elevated, or composite on metal deck?
- How old is the concrete, and has it had time to dry?
- What are we drilling or cutting, how deep, and where exactly? (Mark the proposed locations before the scanning crew arrives.)
- Is the slab post-tensioned, and are PT shop drawings available?
- Can the area above and below be cleared if X-ray is needed?
- What deliverables do we need: field markings only, or a written report, photos or CAD?
- Who will interpret the data on site, and what is their experience?
How to Prepare the Area
- Clear the scan area of materials, debris and standing water.
- Remove floor coverings where possible. Carpet, tile and some coatings affect results.
- Lay out proposed core or cut locations with a clear buffer around each one.
- Have structural drawings, PT shop drawings and any prior scan reports on hand.
- Confirm access to adjacent rooms or the floor below if more context is needed.
What You Should Receive
At a minimum, a concrete scan should leave clear surface markings showing targets and safe zones, with a legend your crew understands. Depending on the project, you may also want a written summary, photos of the marked areas, or CAD documentation of findings so the information outlives the paint. That's especially useful for owners and facility managers who will drill into the same slab again.
Think Beyond a Single Core
Concrete scanning is often one piece of a bigger existing-conditions picture. Teams planning renovations may combine GPR with 3D laser scanning when they also need accurate documentation of structure, MEP systems and surrounding building conditions. The important distinction is that the tools answer different questions: GPR helps investigate what may be embedded in or beneath the concrete, while laser scanning documents visible geometry and existing conditions around the work area.
Frequently Asked Questions
Can GPR detect post-tension cables?
Yes. GPR routinely locates post-tension tendons and can often tell them apart from rebar by their draped profile and depth. In very congested zones, an experienced technician may recommend additional scanning or X-ray for a specific location.
Is GPR safe to use in occupied buildings?
Yes. GPR uses low-power radio energy, not ionizing radiation, so no evacuation or exclusion zone is needed and other work can continue nearby.
Can X-ray be used on slab-on-grade?
No. Radiography needs the source on one side and the detector on the other, so it can't image a slab poured directly on soil. GPR is the standard method there.
How deep can GPR see into concrete?
There is no single depth that applies to every concrete scan. Practical penetration depends on the GPR system, concrete age and moisture, reinforcement density, target size and other site conditions. An experienced technician should evaluate the slab and explain the limitations of the scan before drilling or cutting decisions are made.
Does GPR find plastic conduit?
Often, yes, but non-metallic and empty lines return weaker signals than steel. Good providers mark these conservatively and tell you when a result is uncertain.
Is X-ray more accurate than GPR?
X-ray produces a clearer image in congested elements, while GPR adds depth information and works from one side. "More accurate" depends on the condition. The best choice is the method that can actually answer your question on your slab, safely and on schedule.
How much does concrete scanning cost?
Pricing depends on the number of locations, the total area, access, scheduling (for example, after-hours work) and deliverables. GPR is generally less expensive than X-ray for most scopes because it covers more area per visit and doesn't require clearing the site.
